Texte indiquant « CALIBRE 05 » en lettres blanches sur fond noir.
Texte disant 'l'essence de 5 axes de micro-machining' sur un fond noir.
Schéma technique d'une machine de fabrication de précision de la marque WERMEER avec un grand écran, un clavier et divers contrôles, ainsi qu'une section intérieure contenant un canon calibré.

Tailored for components up to 100 x 100 x 100 mm

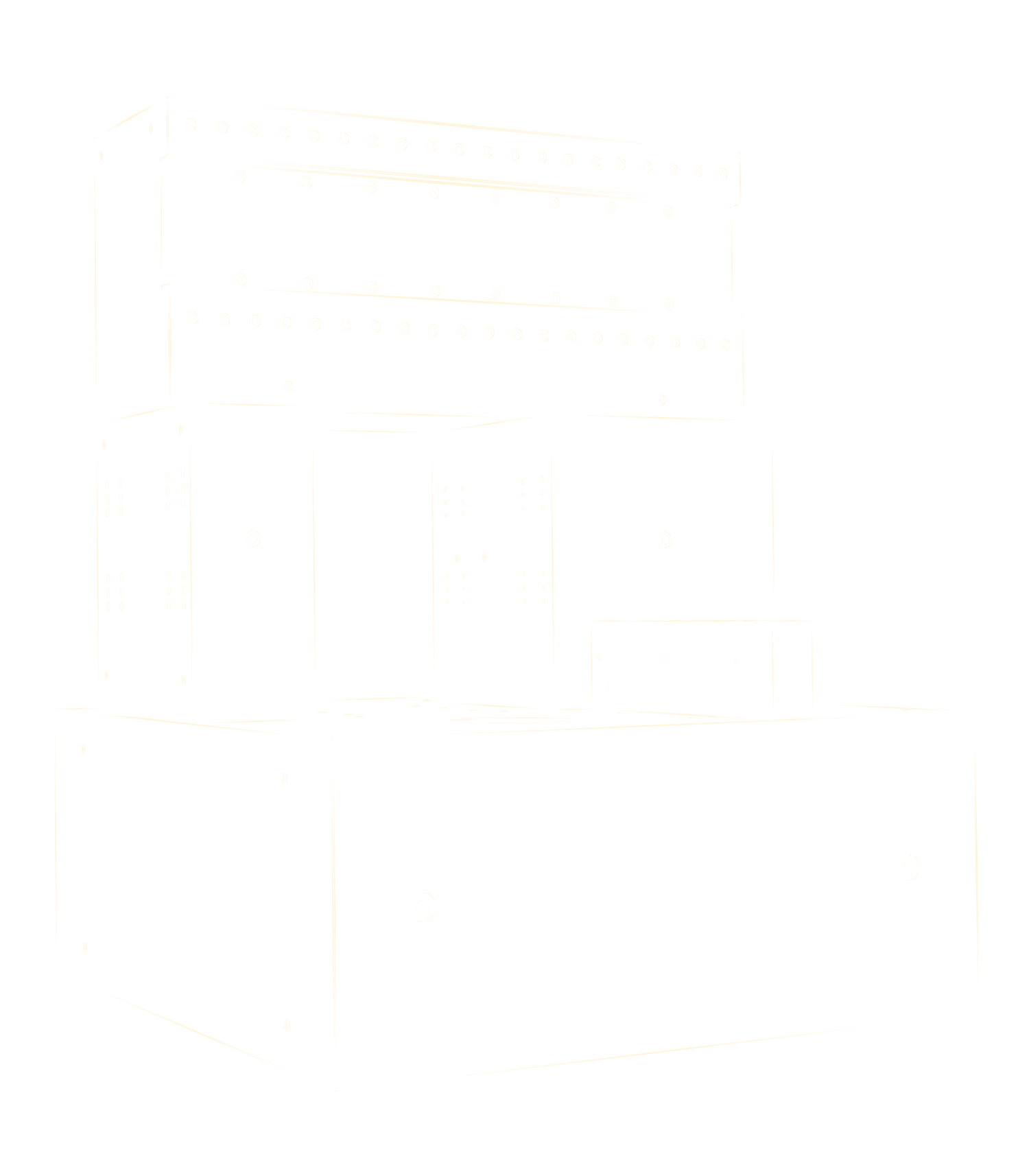

The foundation of your precision must be immutable. By utilizing natural granite for both the base and moving components, we ensure absolute vibrational control and durability. By bridging the gap between billion-year-old geological stability and ultra-modern digital simulation, we maintain structural resonances above 500 Hz, delivering flawless surface finishes.


BORN FROM GRANITE

Schéma technique d'une armoire ou d'un meuble avec plusieurs compartiments et rangements, dessiné en style simplifié avec des lignes blanches sur fond noir.

Uncompromising performance, extreme power density. Driven by direct-drive linear motors, CALIBRE 05 is as powerful as it is dynamic. Its exceptionally short kinematic chain ensures maximum structural rigidity and minimal thermal sensitivity, concentrating sub-micron repeatability into a refined, high-density architecture.


Silhouette d'une personne robotique ou en armure, assise à un bureau, utilisant un clavier d'ordinateur.

Every functional surface is manually lapped to ensure absolute "True Geometry" alignment, guaranteeing a level of straightness and perpendicularity that only the human hand can achieve.

MASTERED BY HAND

THE POWER OF COMPACTNESS

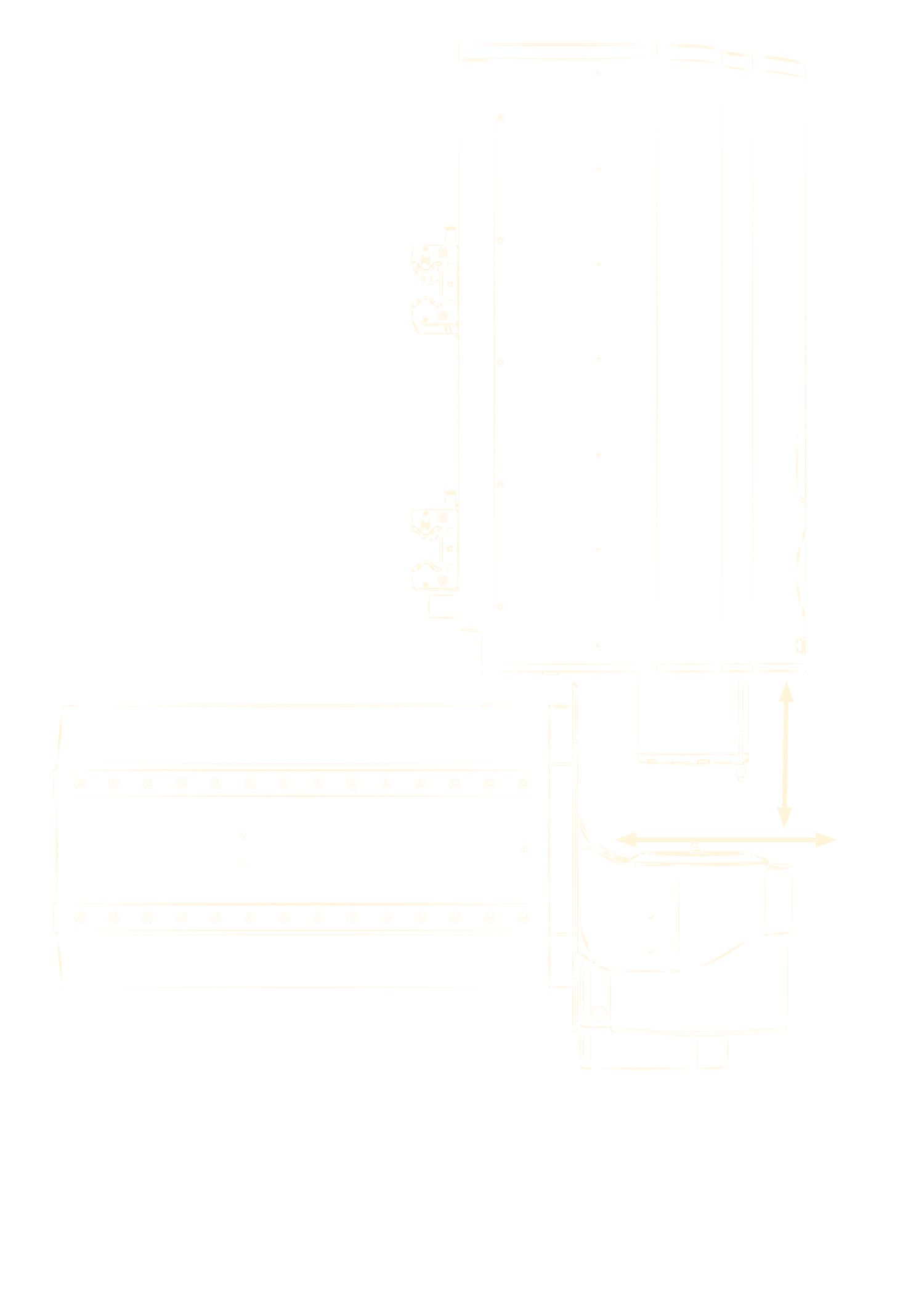

Plan technique d'une pièce mécanique avec dimensions et détails, vue latérale et vue de dessus.

INDUSTRIAL INTEGRITY, AGILE SPIRIT

The Calibre 05 is built on world-class hardware and open-standard software to ensure long-term reliability and universal serviceability. Our "no black box" philosophy guarantees that your investment remains a productive asset for decades.

As an agile partner, we adapt our technology to your specific requirements, from custom clamping and specialized sensors to dedicated automation. We integrate your vision into our precision.


Schéma d'une structure moléculaire avec un noyau central et huit branches angulaires.

    • Direct Drive Technology: All linear and rotary axes are driven by direct-drive motors (linear and torque), eliminating mechanical backlash.

    • Nanometric Feedback: High-resolution encoders provide feedback in the nanometer range, achieving sub-micron repeatability.

    • Z-Axis: Equipped with weight compensation for consistent dynamic response.

    • CNC Interface: Controlled by the Heidenhain TNC 7 with a 24” touchscreen for intuitive and high-level path management.


    • Active Cooling: All primary heat sources (linear motors, torque motors, and spindle) are actively cooled with a stability of +/-0.1°C

    • Low Expansion: The combination of low thermal expansion of natural granite and a very short kinematic chain minimizes thermal drift during long production cycles.


    • Travel: 300/110/195 mm

    • Feed Rate: 20 m/min

    • Acceleration: 8 to 14 m/s2

    • Axis force continus & Peak: 1100 N & 1800 N

    Values are fine tune and optimized for the customer application

    • Travel: +90° -120°

    • Feed Rate: 150 tr/min

    • Acceleration: 140 rad/s2

    • Axis force continus & Peak: 55Nm & 92Nm

    • Travel: 360° continus

    • Feed Rate: 400 tr/min

    • Acceleration: 400 rad/s2

    • Axis force continus & Peak: 39Nm & 66Nm

    • HSK E32: 50.000tr/min 2.8N/m  (S1) ball bearing

    • HSK E32: 24.000tr/min 3.7N/m  (S1) ball bearing

    • HSK E25: 60.000 tr/min (90 000 tr/min)  0.7N/m (S1) Air bearing

    • More options are available


    • Positioning accuracy : < +/- 1 µm

    • Repeatability : < 1 µm


    • MQL (Minimum Quantity Lubrication) on spindle and table.

    • Automatic Tool Changer (28 pockets HSK-25).

    • Zero-point HSK-40 with automatic clamping and cleaning flow.

    • Individual centralized lubrication (distance-based).

    • Integrated mist filtration.

    • Measurement: Blum Laser tool control, Heidenhain touch probes (workpiece & tool), Inductive tool control.

    • Automation: Automatic parts loading systems.

    • Safety: Siemens Sinorix fire extinguishing system.

    • Bespoke Customization: Beyond standard options, Wermeer offers a high degree of customization. We can integrate specific sensors, custom clamping solutions, or specialized software functions to meet your unique production requirements.


    • Footprint: 1250 x 920 x 2450 mm

    • Weight: Approx. 1900 Kg (Pallet truck portable)

Technical Inquiries

Looking for a high-precision solution? Share your project requirements with our engineering team. We integrate your vision into our precision.
